多节点分布式处理（DeepSeek）

多节点分布式处理（DeepSeek）#

快速开始#

vLLM-Ascend 现在支持数据并行（DP）部署，可以在多个 NPU 或实例之间复制模型权重，每个实例处理独立的请求批次。这对于在保证高资源利用率的同时，实现跨设备的吞吐量扩展特别有用。

Each DP rank is deployed as a separate "core engine" process which communicates with front-end process(es) via ZMQ sockets. Data Parallel can be combined with Tensor Parallel, in which case each DP engine owns a number of per-NPU worker processes equal to the TP size.

For Mixture-of-Experts (MoE) models — especially advanced architectures like DeepSeek that utilize Multi-head Latent Attention (MLA) — a hybrid parallelism approach is recommended:

  • Use Data Parallel (DP) for attention layers, which are replicated across devices and handle separate batches.

  • Use Expert or Tensor Parallel (EP/TP) for expert layers, which are sharded across devices to distribute the computation.

This division enables attention layers to be replicated across DP ranks, enabling them to process different batches independently. Meanwhile, expert layers are partitioned (sharded) across devices using DP/TP, maximizing hardware utilization and efficiency.

In these cases, the data parallel ranks are not completely independent. Forward passes must be aligned and expert layers across all ranks are required to synchronize during every forward pass, even if there are fewer requests to be processed than DP ranks.

For MoE models, when any requests are in progress in any rank, we must ensure that empty "dummy" forward passes are performed in all ranks that don't currently have any requests scheduled. This is handled via a separate DP Coordinator process, which communicates with all of the ranks, and a collective operation performed every N steps to determine when all ranks become idle and can be paused. When TP is used in conjunction with DP, expert layers form an EP or TP group of size (DP x TP).

验证多节点通信环境#

物理层要求：#

  • 物理机器必须位于同一个 WLAN 中，并且具有网络连接。

  • 所有 NPU 都通过光模块连接，且连接状态必须正常。

验证流程：#

在每个节点上依次执行以下命令。所有结果必须为 success 且状态必须为 UP：

 # Check the remote switch ports
 for i in {0..7}; do hccn_tool -i $i -lldp -g | grep Ifname; done
 # Get the link status of the Ethernet ports (UP or DOWN)
 for i in {0..7}; do hccn_tool -i $i -link -g ; done
 # Check the network health status
 for i in {0..7}; do hccn_tool -i $i -net_health -g ; done
 # View the network detected IP configuration
 for i in {0..7}; do hccn_tool -i $i -netdetect -g ; done
 # View gateway configuration
 for i in {0..7}; do hccn_tool -i $i -gateway -g ; done
 # View NPU network configuration
 cat /etc/hccn.conf

NPU 互连验证：#

1. Get NPU IP Addresses#

for i in {0..7}; do hccn_tool -i $i -ip -g | grep ipaddr; done

2. Cross-Node PING Test#

# Execute on the target node (replace with actual IP)
hccn_tool -i 0 -ping -g address 10.20.0.20

Run with Docker#

Assume you have two Atlas 800 A2 (64G*8) nodes, and want to deploy the deepseek-v3.1-w8a8 quantitative model across multiple nodes.

# Update the vllm-ascend image
export IMAGE=m.daocloud.io/quay.io/ascend/vllm-ascend:v0.11.0rc0
export NAME=vllm-ascend

# Run the container using the defined variables
# Note: If you are running bridge network with docker, please expose available ports for multiple nodes communication in advance
docker run --rm \
--name $NAME \
--net=host \
--device /dev/davinci0 \
--device /dev/davinci1 \
--device /dev/davinci2 \
--device /dev/davinci3 \
--device /dev/davinci4 \
--device /dev/davinci5 \
--device /dev/davinci6 \
--device /dev/davinci7 \
--device /dev/davinci_manager \
--device /dev/devmm_svm \
--device /dev/hisi_hdc \
-v /usr/local/dcmi:/usr/local/dcmi \
-v /usr/local/Ascend/driver/tools/hccn_tool:/usr/local/Ascend/driver/tools/hccn_tool \
-v /usr/local/bin/npu-smi:/usr/local/bin/npu-smi \
-v /usr/local/Ascend/driver/lib64/:/usr/local/Ascend/driver/lib64/ \
-v /usr/local/Ascend/driver/version.info:/usr/local/Ascend/driver/version.info \
-v /etc/ascend_install.info:/etc/ascend_install.info \
-v /mnt/sfs_turbo/.cache:/root/.cache \
-it $IMAGE bash

Run the following scripts on two nodes respectively.

备注

Before launching the inference server, ensure the following environment variables are set for multi-node communication.

Node 0

#!/bin/sh

# this obtained through ifconfig
# nic_name is the network interface name corresponding to local_ip of the current node
nic_name="xxxx"
local_ip="xxxx"

export VLLM_USE_MODELSCOPE=True
export HCCL_IF_IP=$local_ip
export GLOO_SOCKET_IFNAME=$nic_name
export TP_SOCKET_IFNAME=$nic_name
export HCCL_SOCKET_IFNAME=$nic_name
export OMP_PROC_BIND=false
export OMP_NUM_THREADS=10
export HCCL_BUFFSIZE=1024

# The w8a8 weight can be obtained from https://www.modelscope.cn/models/vllm-ascend/DeepSeek-V3.1-W8A8
# If you want to do the quantization manually, please refer to https://vllm-ascend.readthedocs.io/en/latest/user_guide/feature_guide/quantization.html
vllm serve vllm-ascend/DeepSeek-V3.1-W8A8 \
--host 0.0.0.0 \
--port 8004 \
--data-parallel-size 4 \
--data-parallel-size-local 2 \
--data-parallel-address $local_ip \
--data-parallel-rpc-port 13389 \
--tensor-parallel-size 4 \
--seed 1024 \
--served-model-name deepseek_v3.1 \
--enable-expert-parallel \
--max-num-seqs 16 \
--max-model-len 32768 \
--quantization ascend \
--max-num-batched-tokens 4096 \
--trust-remote-code \
--no-enable-prefix-caching \
--gpu-memory-utilization 0.9 \
--additional-config '{"ascend_scheduler_config":{"enabled":true},"torchair_graph_config":{"enabled":true}}'

Node 1

#!/bin/sh

# this obtained through ifconfig
# nic_name is the network interface name corresponding to local_ip of the current node
nic_name="xxx"
local_ip="xxx"

# The value of node0_ip must be consistent with the value of local_ip set in node0 (master node)
node0_ip="xxxx"

export VLLM_USE_MODELSCOPE=True
export HCCL_IF_IP=$local_ip
export GLOO_SOCKET_IFNAME=$nic_name
export TP_SOCKET_IFNAME=$nic_name
export HCCL_SOCKET_IFNAME=$nic_name
export OMP_PROC_BIND=false
export OMP_NUM_THREADS=10
export VLLM_USE_V1=1
export HCCL_BUFFSIZE=1024

vllm serve vllm-ascend/DeepSeek-V3.1-W8A8 \
--host 0.0.0.0 \
--port 8004 \
--headless \
--data-parallel-size 4 \
--data-parallel-size-local 2 \
--data-parallel-start-rank 2 \
--data-parallel-address $node0_ip \
--data-parallel-rpc-port 13389 \
--tensor-parallel-size 4 \
--seed 1024 \
--quantization ascend \
--served-model-name deepseek_v3.1 \
--max-num-seqs 16 \
--max-model-len 32768 \
--max-num-batched-tokens 4096 \
--enable-expert-parallel \
--trust-remote-code \
--no-enable-prefix-caching \
--gpu-memory-utilization 0.92 \
--additional-config '{"ascend_scheduler_config":{"enabled":true},"torchair_graph_config":{"enabled":true}}'

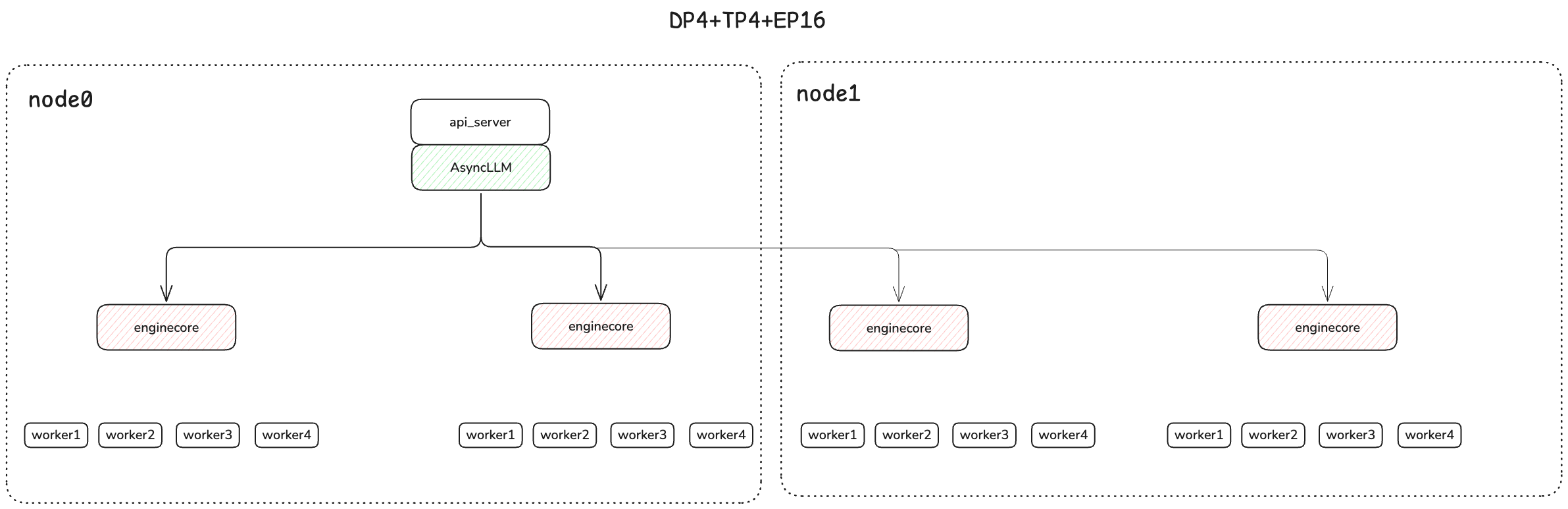

The deployment view looks like: 替代文本

一旦你的服务器启动，你可以通过输入提示词来查询模型：

curl http://{ node0 ip:8004 }/v1/completions \
    -H "Content-Type: application/json" \
    -d '{
        "model": "deepseek_v3.1",
        "prompt": "The future of AI is",
        "max_tokens": 50,
        "temperature": 0
    }'

Run Benchmarks#

For details, refer to benchmark.

export VLLM_USE_MODELSCOPE=true
vllm bench serve --model vllm-ascend/DeepSeek-V3.1-W8A8  --served-model-name deepseek_v3.1 \
--dataset-name random --random-input-len 128 --random-output-len 128 \
--num-prompts 200  --trust-remote-code --base-url "http://{ node0 ip }:8004" --request-rate 1
