Decode Context Parallel (DCP)

Decode Context Parallel shards the KV cache along the sequence dimension across devices in a Tensor Parallel (TP) group. It eliminates redundant KV-cache storage without adding devices to the process world.

Prefill Context Parallel is not supported by vLLM Ascend. This document describes only DCP and the separate DSA-CP sparse-attention path.

KV-cache layout

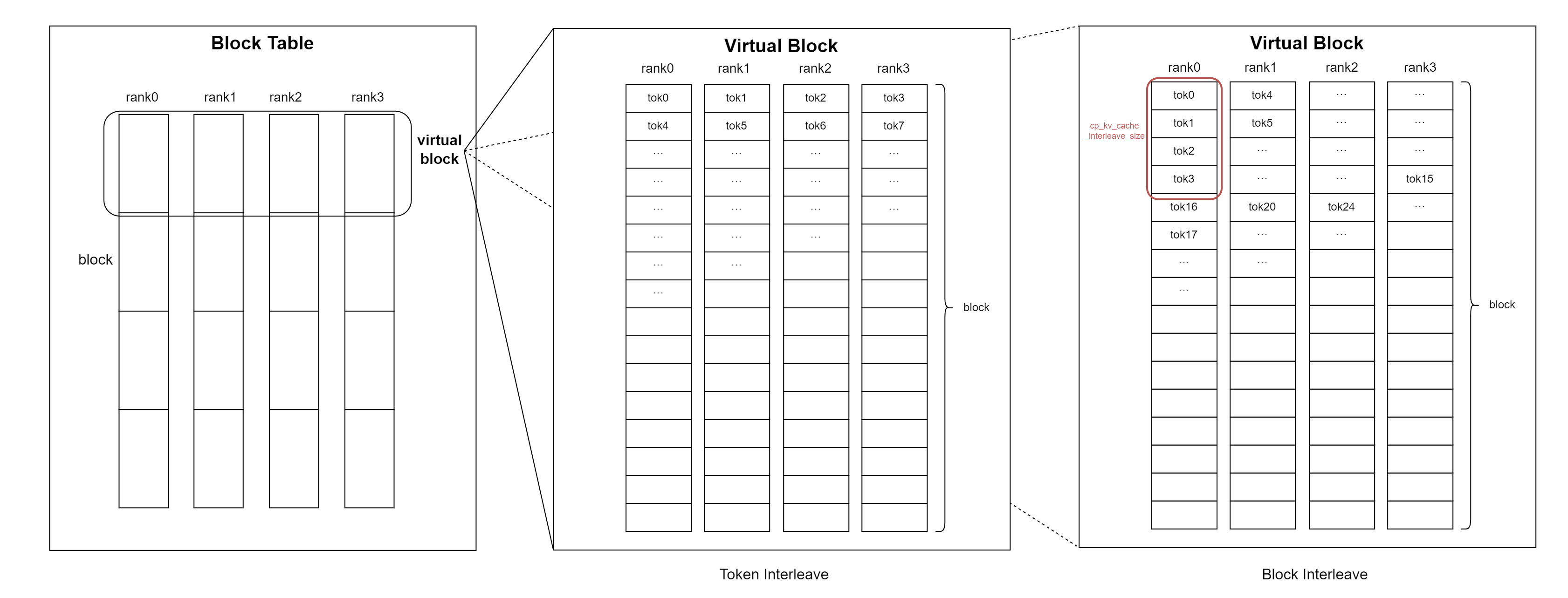

DCP stores tokens in an interleaved layout across ranks. The interleaving granularity is controlled by cp_kv_cache_interleave_size, whose default value is 1.

For a DCP size of dcp_size, a virtual block contains block_size * dcp_size tokens. For token x:

  • virtual_block_index = x // (block_size * dcp_size)
  • offset_in_virtual_block = x % (block_size * dcp_size)
  • local_block_index = offset_in_virtual_block // cp_kv_cache_interleave_size
  • target_rank = local_block_index % dcp_size

The slot-mapping calculation uses this layout so each DCP rank stores only its local sequence shard. The current implementation requires block_size % cp_kv_cache_interleave_size == 0.

DCP block table

Attention execution

Backend structure

DCP is implemented as a specialization of the corresponding v1 attention backend rather than as a parallel copy of it:

  • DCPMetadataBuilderMixin owns DCP group/rank discovery and access to the per-rank context-length matrix.
  • DCPImplMixin owns DCP collectives and the common partial-output/LSE merge.
  • GQA, MLA, and SFA DCP builders inherit their v1 metadata builders. They only add DCP metadata fields or temporarily expose the DCP-specific cache view.
  • GQA, MLA, and SFA DCP implementations inherit their v1 implementations and override only the kernel stages whose communication or cache layout differs.

The normal v1 builders remain the source of truth for request classification, padding, masks, graph metadata, and common KV-cache metadata. DCP-specific metadata is kept out of the normal v1 metadata schemas.

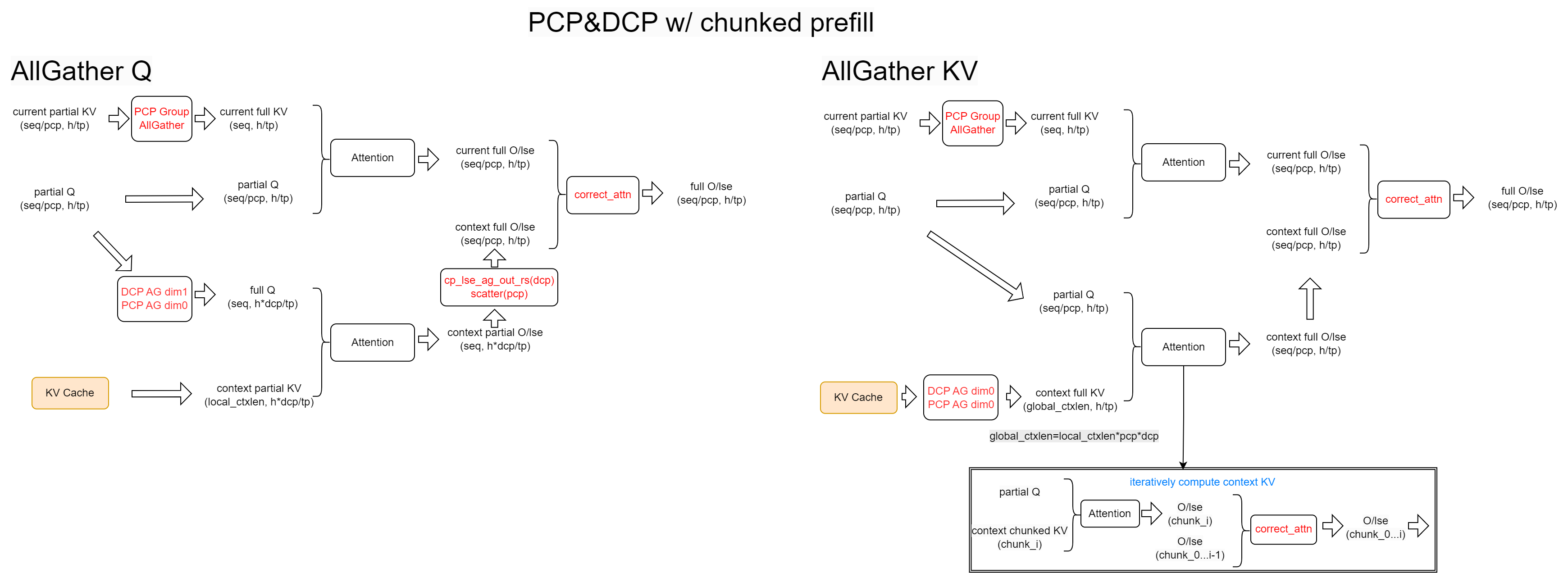

Prefill and chunked prefill

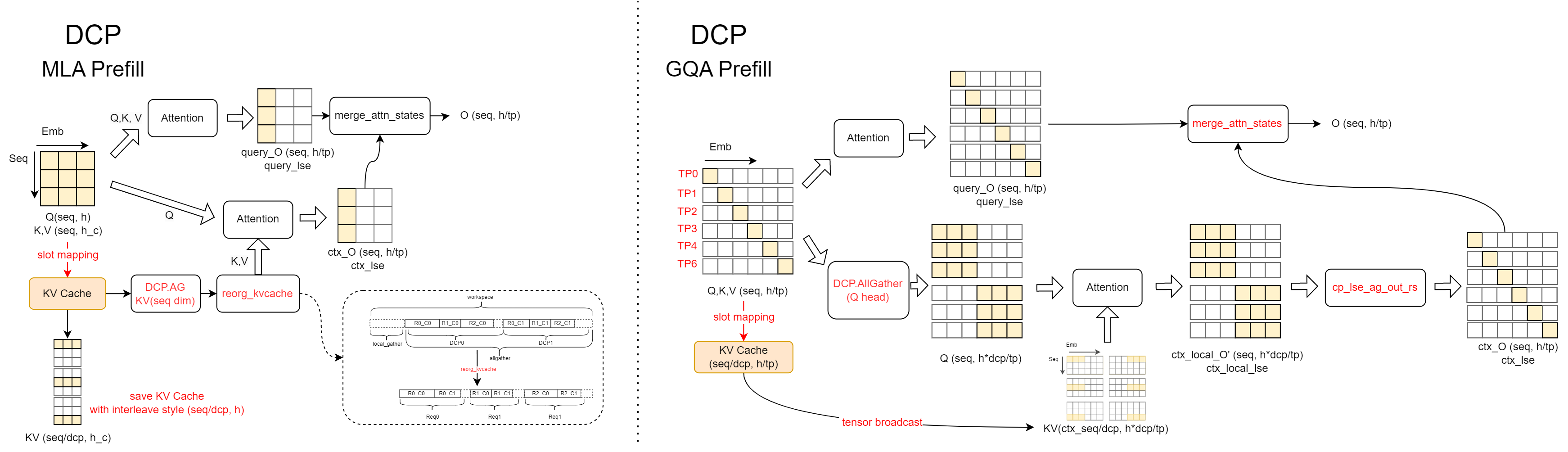

During chunked or cached prefill, the local query must attend to KV-cache shards distributed across the DCP group.

  • MLA gathers the context KV cache, restores request-contiguous order, and computes attention for the current query chunk.
  • GQA gathers query heads across the DCP group, computes attention against each local KV shard, and combines partial outputs and LSE values.

DCP prefill

Decode

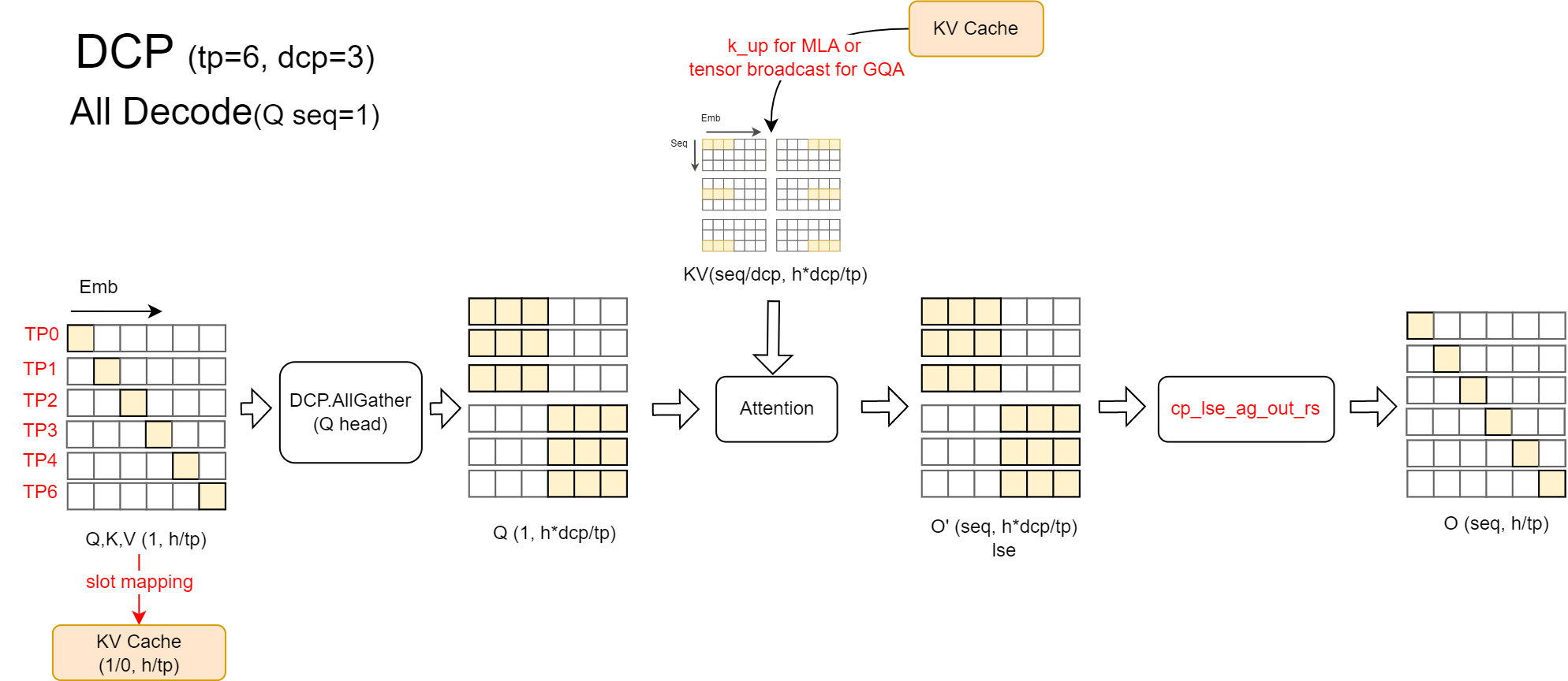

Decode gathers the query heads required by each DCP rank, computes attention against the local KV-cache shard, and combines partial outputs and LSE values across the DCP group.

DCP decode

GLM-5.2 SFA DCP replicated indexer

GLM-5.2 uses Sparse Flash Attention (SFA) with a LightningIndexer. For DCP, the indexer needs a full-sequence view to select the same sparse top-k blocks as non-DCP SFA, while the much larger SFA KV cache should remain sharded to retain DCP's memory benefit:

  • The LightningIndexer cache is replicated on every DCP rank, so index selection uses the complete sequence.
  • The SFA KV cache remains DCP-local. Global indices from the replicated indexer view are remapped to local KV indices before SFA runs.
  • During prefill or a mixed batch, only KV blocks referenced by the sparse block table are compacted and all-gathered after the current layer writes its KV cache.
  • Decode-only batches retain the DCP SFA Q-gather and result-merge path.

This mode is selected automatically for SFA sparse models when prefill_context_parallel_size=1 and decode_context_parallel_size>1. It requires decode_context_parallel_size == tensor_parallel_size.

For a GLM-5.2 DSA-CP deployment, enable FlashComm1 and DSA-CP and keep the CP interleave size equal to the KV-cache block size:

export VLLM_ASCEND_ENABLE_FLASHCOMM1=1

vllm serve <glm-5.2-model> \
  --tensor-parallel-size <N> \
  --prefill-context-parallel-size 1 \
  --decode-context-parallel-size <N> \
  --block-size <B> \
  --cp-kv-cache-interleave-size <B> \
  --additional-config '{"enable_dsa_cp": true}'

The replicated indexer increases indexer-cache memory in proportion to the DCP world size; the SFA KV cache itself remains sharded.

SFA DSA-CP o_proj Path

SFA DSA-CP execution intentionally reuses the normal TP-sharded o_proj. This applies both to a mixed-role instance and to a PD-disaggregated P node; it is not a standalone user-facing o_proj TP switch. The runtime path supports two layouts:

  • Decode-only batches keep the decode TP path. SFA outputs are exchanged with an all-to-all in the TP group, then the original TP-sharded o_proj runs normally.
  • Prefill or mixed batches, including batches on a PD-disaggregated P node, produce SFA outputs that are not directly compatible with the TP-sharded o_proj input layout. Before o_proj forward, each rank all-gathers the TP-sharded o_proj weight and all input-sharded quantization parameters into temporary full-weight buffers. The full-weight o_proj forward runs once for that batch, and the module is then restored to the TP parameter aliases.

The storage invariant is that the original TP-sharded o_proj parameter remains the only persistent source of truth. o_proj_tp_* tensors are aliases of the original parameter storage. o_proj_full_* tensors are reusable communication buffers for prefill/mixed full-gather execution only. They must not become a second persistent copy of the TP weight.

This coupling preserves the existing decode TP behavior, supports prefill/mixed DSA-CP batches on both mixed-role and P-only instances, and avoids a persistent full-weight copy on every TP rank.

  • Slot mapping: vllm_ascend/worker/block_table.py
  • Input and attention metadata: vllm_ascend/worker/model_runner_v1.py
  • Shared DCP backend capabilities: vllm_ascend/attention/context_parallel/common_cp.py
  • GQA DCP backend: vllm_ascend/attention/context_parallel/attention_cp.py
  • MLA DCP backend: vllm_ascend/attention/context_parallel/mla_cp.py
  • SFA DCP backend: vllm_ascend/attention/context_parallel/sfa_cp.py
  • DSA-CP backend: vllm_ascend/attention/context_parallel/dsa_cp.py
