Sequence Parallelism

Overview

Sequence Parallelism (SP) shards the token dimension across tensor-parallel ranks around the communication boundaries of transformer layers.

On vLLM Ascend, SP currently covers the MoE path (SP MoE). The attention o_proj ends with a TP all-reduce, so its inputs are replicated on every TP rank. Feeding those replicated tokens directly into the experts duplicates compute and communication under expert parallelism. SP MoE keeps the expert inputs sharded by sequence and restores the expected layout at the MoE output boundary instead.

The original flashcomm feature overlapped functionally with the SP feature and has been deprecated since v0.27.1.

Principle

SP MoE shards the input along the token dimension in each Transformer layer. Different TP ranks therefore process different tokens, avoiding duplicate expert computation for the same tokens.

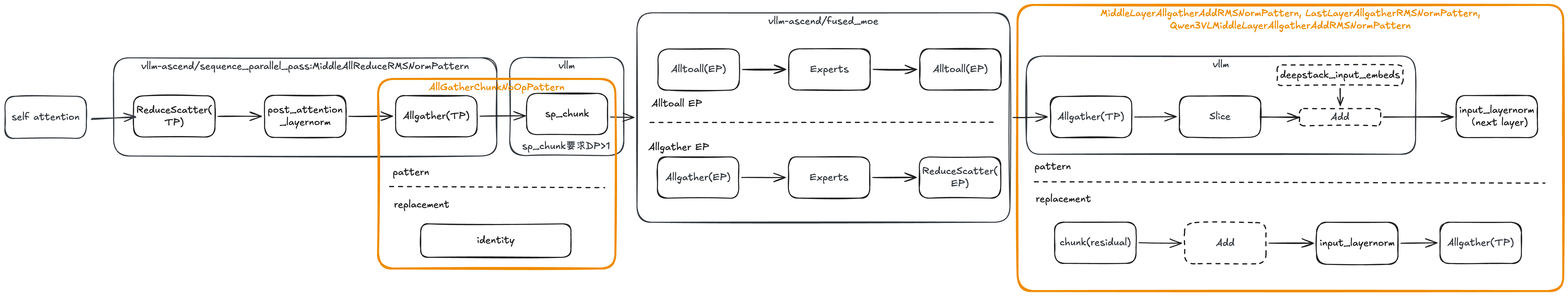

The main data flow of an MoE layer is:

Sequence-parallel input sharding
  -> TP all-gather: collect tokens from all ranks
  -> attention
  -> TP reduce scatter
  -> RMS Norm
  -> Router
  -> all-to-all
  -> Moe

Different DP ranks may have different numbers of valid tokens. Therefore, the buffer after all-gather cannot be treated as a contiguous sequence of valid tokens; it must be unpadded and zero-padded according to each rank's local token size. This keeps tokens sequence-sharded during expert computation and reduces duplicate computation and unnecessary communication.

How to use

Steps to follow to enable SP currently:

  • tensor_parallel_size > 1 and data_parallel_size > 1.
  • enable_expert_parallel is set (MoE models only).
  • --additional-config '{"enable_flashcomm1": true}' set flashcomm1

Temporary FlashComm switch (Ascend only)

Until SP support is fully validated, vLLM Ascend keeps SP MoE option by original flashcomm option.

To opt into upstream SP MoE, set one of the following (the additional_config form is preferred):

# Preferred.
vllm serve <moe-model> \
  --data-parallel-size 2 \
  --tensor-parallel-size 2 \
  --enable-expert-parallel \
  --additional-config '{"enable_flashcomm1": true}'

# Kept for compatibility.
VLLM_ASCEND_ENABLE_FLASHCOMM1=1 vllm serve <moe-model> \
  --data-parallel-size 2 \
  --tensor-parallel-size 2 \
  --enable-expert-parallel

This switch is temporary and deprecated. Referencing either form logs a FlashComm is deprecated warning from init_ascend_config, and the override carries a TODO to remove it once SP is supported — after that, the upstream configuration above takes effect directly.
