Disaggregated Encoder with Mooncake on Ascend

ECMooncakeConnector transfers multimodal encoder outputs from an Encoder instance (E) to a language-model instance running prefill and decode (PD). Separating these stages lets you scale vision encoding independently of the language model. With cross-Encoder caching enabled, Encoders can also reuse image embeddings through a shared Mooncake Store.

This guide provides separate A2/RoCE and A3/HCCS with FabricMem transport setups. Choose the setup for your hardware, start a single-host 1E + 1PD service, then add shared caching and a second Encoder. The serving commands use the ascend Mooncake protocol in both setups.

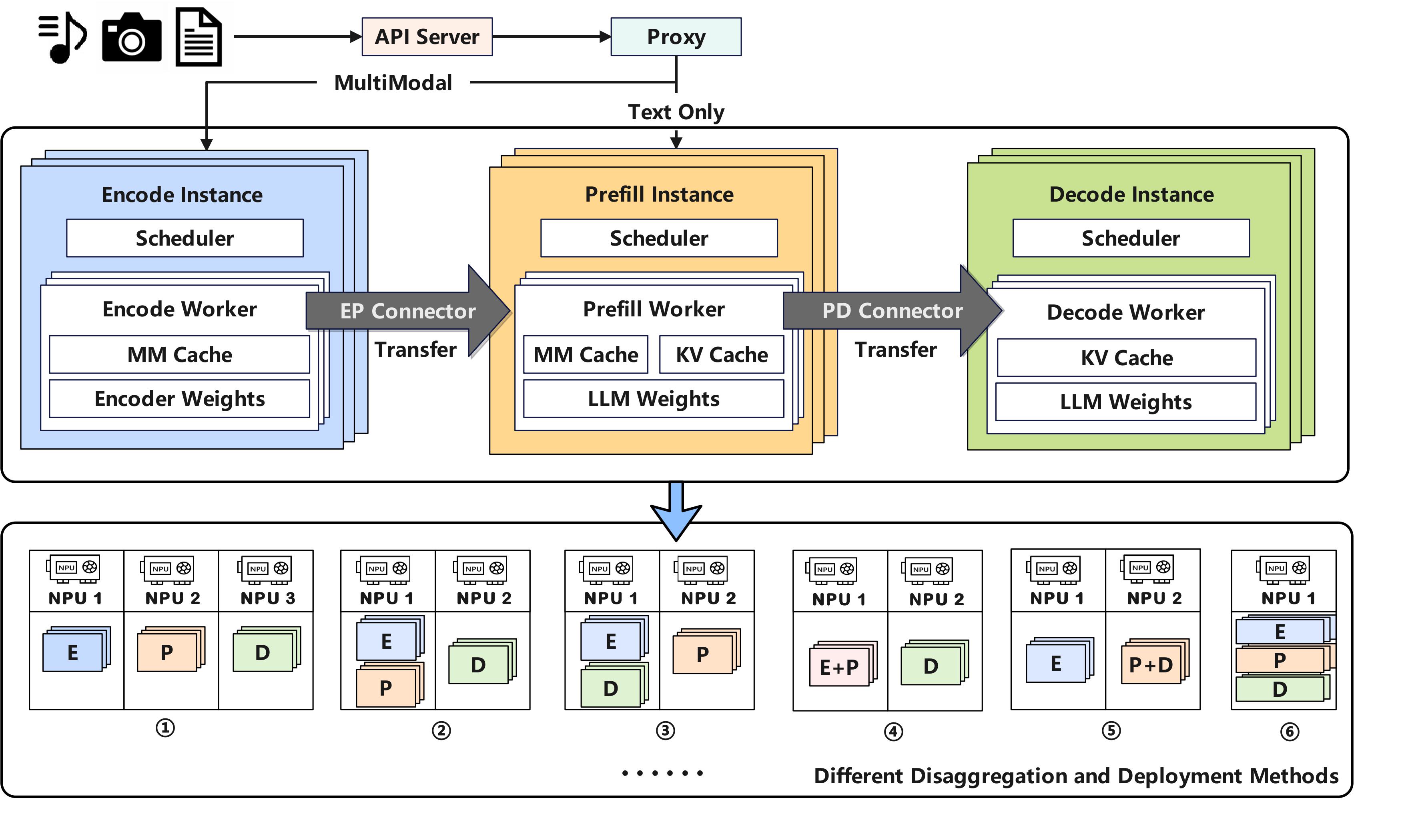

Deployment overview

Router / proxy             Encoder / producer                    PD / consumer
      |                             |                                  |
      |--------image request------->|                                  |
      |<-------image metadata-------|                                  |
      |-------------------metadata-only request----------------------->|
      |                             |-------reserve destination------->|
      |                             |<-------session + address---------|
      |                             |======Mooncake embedding write===>|
      |                             |                                  |
      |                             |                           Prefill + decode
      |<-----------------------generated response----------------------|
                                    ^
                          GET / async PUT on miss
                                    |
                                    v
                       +-------------------------+
                       |     Mooncake Store      |
                       | Shared embedding cache  |
                       +-------------------------+

With caching enabled, Encoders GET embeddings from Store and encode on a miss, then publish through asynchronous PUT. Both cached and newly encoded outputs reach PD through EC P2P. Store is a shared cache for the Encoders; it does not forward requests between the proxy and PD.

Requirements

  • Install compatible vLLM, vLLM Ascend, CANN, and Mooncake builds. See Install Mooncake for installation guidance.
  • Each producer must use TP=1, PP=1, and DP=1. Scale encoding by starting independent producer instances.
  • Reserve NPU memory for the model and EC pools, and provision Store storage separately for the selected transport. Tune the example pool sizes and memory-utilization fractions for your model and hardware.
  • Ensure HTTP services, EC control addresses, and Mooncake transport endpoints are reachable from their peers. For cross-node and container setup, follow Verify Multi-Node Communication Environment and the container instructions in that guide.

For cross-Encoder caching:

  • Install Mooncake with Ascend Store support and run a RAM Store with mooncake_master.
  • Leave multimodal processor caching enabled (the default) to preserve content identifiers.
  • Use the same immutable weights, compatible preprocessing, and matching multimodal identifiers on participating Encoders.
  • Do not enable LoRA; the current connector rejects LoRA configurations.

Hardware, connectivity, and software

Choose the communication path independently from the number of Store engines:

Environment EC embeddings, E to PD Store access
A2 Ascend Direct RoCE Non-FabricMem RoCE, shared or independent Store engine
A3 within a supported HCCS domain Ordinary HCCS device-to-device transfer FabricMem access to Store Host memory over the supported fabric
A3 with an operational RoCE network Ascend Direct RoCE Non-FabricMem RoCE

Confirm the actual server/product, visible device mapping, and interconnect. FabricMem is a Host-memory access mechanism on supported platforms. Ordinary HCCS device transfer alone does not give a Store access to remote Host memory. A2 does not support the mixed EC/HCCS + Store/RoCE configuration in this connector. A5 (Atlas 950) has not yet been tested or adapted for this EC Store integration.

Use the Ascend compatibility table for the installed hardware and software. For FabricMem, Mooncake additionally requires supported A3 hardware, CANN 9.0+, and HDK 26.0+; see its Ascend Direct requirements. These communication requirements apply to both embedded and standalone Store.

Before serving:

  1. Inspect npu-smi info and the device mapping available inside the container. ASCEND_RT_VISIBLE_DEVICES must use the device identifiers accepted by that installation; do not assume host physical IDs equal process-local IDs.
  2. For RoCE, check each selected device's IP, link, and peer reachability with hccn_tool and the A2/A3 communication checks.
  3. For HCCS/FabricMem, verify the fabric domain, device visibility, permissions, and the A3 communication checks. A missing RoCE IP does not by itself rule out HCCS/FabricMem. Conversely, topology output showing HCCS does not verify Host-memory allocation or mapping.
  4. Mount the devices, driver libraries, configuration files such as /etc/hccn.conf, and network resources required by the chosen path, following the container guide. Keep the driver, userspace libraries, and Mooncake build compatible.

The connector leaves HCCL_INTRA_PCIE_ENABLE, HCCL_INTRA_ROCE_ENABLE, ASCEND_GLOBAL_RESOURCE_CONFIG, and ASCEND_ENABLE_USE_FABRIC_MEM unchanged. Configure them before starting each process; restarting a service is required when changing transport. Do not change selectors between EC and Store engine creation inside a running worker.

1. Prepare the serving environment

The example uses E on NPU 0, PD on NPU 1, and these ports:

Service Address
Encoder HTTP 127.0.0.1:19534
PD HTTP 127.0.0.1:19537
PD EC reservation/control tcp://127.0.0.1:19019
EPD proxy HTTP 127.0.0.1:10002
Optional Store master 127.0.0.1:50051

Run this environment setup in each serving terminal. Use the same configured model path or identifier on E and PD:

export MODEL=Qwen/Qwen3.5-9B

A2: EC and Store over RoCE

In every Encoder and PD terminal:

unset ASCEND_ENABLE_USE_FABRIC_MEM
unset ASCEND_BUFFER_POOL
unset ASCEND_GLOBAL_RESOURCE_CONFIG
export HCCL_INTRA_PCIE_ENABLE=0
export HCCL_INTRA_ROCE_ENABLE=1

This selects the shared EC/Store engine path when caching is enabled. PD uses its own EC receive engine; it does not become a Store client. Keep the selectors on both roles for the lifetime of their processes: successful engine creation alone does not establish that later HCCL channel creation will use the same path.

For an independent Store RoCE engine, use the same selectors and additionally set this on each Encoder before starting it:

export ASCEND_GLOBAL_RESOURCE_CONFIG='{
  "comm_resource_config.protocol_desc": ["roce:device"],
  "store": {
    "comm_resource_config.protocol_desc": ["roce:device"]
  }
}'

Set the matching top-level EC configuration on PD:

export ASCEND_GLOBAL_RESOURCE_CONFIG='{
  "comm_resource_config.protocol_desc": ["roce:device"]
}'

The top level selects EC resources; the store object selects the Store-owned engine's resources. A separate engine does not create an independent network or imply that mixed HCCS/RoCE works on A2.

A3: EC over HCCS, Store over FabricMem

Within a supported HCCS/FabricMem domain, replace the RoCE setup with the following in every Encoder and PD terminal:

unset HCCL_INTRA_PCIE_ENABLE
unset HCCL_INTRA_ROCE_ENABLE
unset ASCEND_GLOBAL_RESOURCE_CONFIG
unset ASCEND_BUFFER_POOL
export ASCEND_ENABLE_USE_FABRIC_MEM=1

EC uses ordinary Ascend HCCS device transfers. On a caching Encoder, Store creates its own FabricMem engine and owns the Host storage segment; it does not reuse the EC engine. PD needs HCCS reachability for EC reception and does not need a Store client. FabricMem applies to the Store engine, so enabling it does not turn the EC payload path into a Host Store operation.

This is the A3 HCCS/FabricMem setup described in the Ascend Store guide. Leave the resource JSON unset for this basic setup.

To use A3 RoCE instead, use the A2 RoCE environment block and optionally its independent-engine block after verifying the A3 RoCE network. Disable FabricMem by unsetting ASCEND_ENABLE_USE_FABRIC_MEM, not by assigning 0.

Optional A3 experiment: EC over HCCS, Store over RoCE

You can also try EC/HCCS + Store/RoCE on A3 when the participating devices have both working HCCS and RoCE connectivity, and the installed Mooncake/HIXL stack supports selecting the two engines' resources independently. We have not tested this combination for this connector; treat it as an experimental configuration rather than the validated A3 FabricMem path.

On each Encoder, disable FabricMem and global RoCE forcing, then select the protocol for each engine explicitly:

unset ASCEND_ENABLE_USE_FABRIC_MEM
unset ASCEND_BUFFER_POOL
unset HCCL_INTRA_PCIE_ENABLE HCCL_INTRA_ROCE_ENABLE
export ASCEND_GLOBAL_RESOURCE_CONFIG='{
  "comm_resource_config.protocol_desc": ["hccs:device"],
  "store": {
    "comm_resource_config.protocol_desc": ["roce:device"]
  }
}'

On PD, use HCCS for its EC receive engine:

unset ASCEND_ENABLE_USE_FABRIC_MEM
unset ASCEND_BUFFER_POOL
unset HCCL_INTRA_PCIE_ENABLE HCCL_INTRA_ROCE_ENABLE
export ASCEND_GLOBAL_RESOURCE_CONFIG='{
  "comm_resource_config.protocol_desc": ["hccs:device"]
}'

Do not enable HCCL_INTRA_ROCE_ENABLE=1 globally for this experiment: it can force the EC engine onto RoCE despite its HCCS resource configuration. If that software stack requires the global RoCE switch for Store operation, use one of the earlier setups instead.

2. Start the Encoder and PD

The commands below are a small functional example, not throughput tuning. The memory fractions and EC pool sizes must fit the selected model and device; increase the pool if concurrent image payloads do not fit. Use real model weights on both roles, not --load-format dummy, for output validation.

Start E in its own terminal with the common environment and one transport setup from step 1:

ASCEND_RT_VISIBLE_DEVICES=0 vllm serve "$MODEL" \
  --host 0.0.0.0 --port 19534 \
  --gpu-memory-utilization 0.35 \
  --max-model-len 4096 \
  --max-num-batched-tokens 4096 \
  --max-num-seqs 2 \
  --limit-mm-per-prompt '{"image":2,"video":0}' \
  --enable-request-id-headers \
  --ec-transfer-config '{
    "ec_connector": "ECMooncakeConnector",
    "ec_role": "ec_producer",
    "ec_buffer_device": "npu",
    "ec_buffer_size": 134217728,
    "ec_connector_extra_config": {
      "mooncake_protocol": "ascend"
    }
  }'

Start PD in another terminal with the same model and the matching transport setup:

ASCEND_RT_VISIBLE_DEVICES=1 vllm serve "$MODEL" \
  --host 0.0.0.0 --port 19537 \
  --gpu-memory-utilization 0.75 \
  --max-model-len 4096 \
  --max-num-batched-tokens 4096 \
  --max-num-seqs 2 \
  --limit-mm-per-prompt '{"image":2,"video":0}' \
  --enable-mm-embeds \
  --enable-request-id-headers \
  --ec-transfer-config '{
    "ec_connector": "ECMooncakeConnector",
    "ec_role": "ec_consumer",
    "ec_ip": "127.0.0.1",
    "ec_port": 19019,
    "ec_buffer_device": "npu",
    "ec_buffer_size": 268435456,
    "ec_connector_extra_config": {
      "mooncake_protocol": "ascend"
    }
  }'

EC configuration fields

--ec-transfer-config is a JSON object. Configure the following fields on each role; ec_connector_extra_config holds connector-specific options:

Field Location Meaning in these commands
ec_connector EC config ECMooncakeConnector selects the Mooncake EC connector; Ascend supplies its NPU implementation. Use it on both roles.
ec_role EC config ec_producer encodes and sends outputs on E; ec_consumer receives them on P/PD.
ec_ip Consumer EC config Local address on which the ZMQ control service binds and which E uses to contact it. Use a peer-reachable address across hosts.
ec_port Consumer EC config ZMQ control port for the first PD worker, here 19019. E contacts it to reserve space for embeddings and obtain the destination address. Other TP/DP workers use consecutive ports, as shown below.
ec_buffer_device EC config npu places the transfer pool on the NPU.
ec_buffer_size EC config Pool size in bytes: E uses it for staging outgoing embeddings and Store I/O; P/PD uses it to receive embeddings. Here E reserves 128 MiB and PD 256 MiB. It is separate from Store Host capacity.
ec_connector_extra_config EC config Object containing transport and optional Store reuse settings.
mooncake_protocol Extra config Set to ascend on both roles. HCCS/RoCE/FabricMem are selected through the process environment, not by changing this value to tcp or rdma.
control_timeout_s Extra config, optional Reservation RPC timeout; default 30 seconds.
push_wait_timeout_s Extra config, optional Consumer wait for a matching push; default 60 seconds.

--enable-mm-embeds explicitly enables received-embedding inputs on PD. Cross-Encoder caching requires multimodal processor caching to remain enabled; the default already satisfies this requirement. Encoder TP/PP/DP must each be one; these example commands use TP=1 and the default PP=1, DP=1.

For the single-worker example, PD listens for EC control requests on 19019. Its OpenAI HTTP API listens on 19537; these are different services. The control port handles reservations and transfer coordination, not the embedding payload itself.

Consumer TP and DP examples

E remains a single-device producer on device 0 with TP=1, DP=1. The examples below replace the PD command above and the proxy command in step 3; use only one example at a time. Each uses devices 1 and 2 for PD, so three devices are needed in total. Apply the same model and chosen transport environment first.

TP=2, DP=1: one PD model split across two devices

ASCEND_RT_VISIBLE_DEVICES=1,2 vllm serve "$MODEL" \
  --host 0.0.0.0 --port 19537 \
  --tensor-parallel-size 2 --data-parallel-size 1 \
  --gpu-memory-utilization 0.75 \
  --max-model-len 4096 --max-num-batched-tokens 4096 --max-num-seqs 2 \
  --limit-mm-per-prompt '{"image":2,"video":0}' \
  --enable-mm-embeds \
  --enable-request-id-headers \
  --ec-transfer-config '{
    "ec_connector": "ECMooncakeConnector",
    "ec_role": "ec_consumer",
    "ec_ip": "127.0.0.1",
    "ec_port": 19019,
    "ec_buffer_device": "npu",
    "ec_buffer_size": 268435456,
    "ec_connector_extra_config": {"mooncake_protocol": "ascend"}
  }'

TP ranks 0 and 1 use control ports 19019 and 19020. The proxy needs only the TP-rank-0 address; the connector coordinates delivery to the TP workers:

export VLLM_ROOT=/path/to/vllm
python "$VLLM_ROOT/examples/disaggregated/disaggregated_encoder/disagg_epd_proxy.py" \
  --host 0.0.0.0 --port 10002 \
  --encode-servers-urls http://127.0.0.1:19534 \
  --prefill-servers-urls disable \
  --decode-servers-urls http://127.0.0.1:19537 \
  --ec-consumer-zmq-addrs tcp://127.0.0.1:19019 \
  --ec-consumer-dp-size 1

TP=1, DP=2: two PD replicas

ASCEND_RT_VISIBLE_DEVICES=1,2 vllm serve "$MODEL" \
  --host 0.0.0.0 --port 19537 \
  --data-parallel-size 2 \
  --gpu-memory-utilization 0.75 \
  --max-model-len 4096 --max-num-batched-tokens 4096 --max-num-seqs 2 \
  --limit-mm-per-prompt '{"image":2,"video":0}' \
  --enable-mm-embeds \
  --enable-request-id-headers \
  --ec-transfer-config '{
    "ec_connector": "ECMooncakeConnector",
    "ec_role": "ec_consumer",
    "ec_ip": "127.0.0.1",
    "ec_port": 19019,
    "ec_buffer_device": "npu",
    "ec_buffer_size": 268435456,
    "ec_connector_extra_config": {"mooncake_protocol": "ascend"}
  }'

DP replicas 0 and 1 use control ports 19019 and 19020. This command exposes one PD HTTP service on 19537. List both replicas' EC addresses in the proxy and set its DP size so each request and its embeddings go to the same replica:

export VLLM_ROOT=/path/to/vllm
python "$VLLM_ROOT/examples/disaggregated/disaggregated_encoder/disagg_epd_proxy.py" \
  --host 0.0.0.0 --port 10002 \
  --encode-servers-urls http://127.0.0.1:19534 \
  --prefill-servers-urls disable \
  --decode-servers-urls http://127.0.0.1:19537 \
  --ec-consumer-zmq-addrs tcp://127.0.0.1:19019,tcp://127.0.0.1:19020 \
  --ec-consumer-dp-size 2

In general, worker (DP rank d, TP rank r) listens on ec_port + d * TP_size + r. For example, TP=2 and DP=2 would use:

PD replica TP rank 0 TP rank 1 Address supplied to the proxy
DP rank 0 19019 19020 tcp://127.0.0.1:19019
DP rank 1 19021 19022 tcp://127.0.0.1:19021

That combined configuration needs four PD devices plus the Encoder device. Reserve every worker's port, but pass only one TP-rank-0 address per DP replica to the proxy, in DP order. These addresses are separate from the HTTP and Store ports.

Wait until both services are ready:

curl --fail http://127.0.0.1:19534/health
curl --fail http://127.0.0.1:19537/health

3. Start the proxy and send a request

Use the proxy:

export VLLM_ROOT=/path/to/vllm
python "$VLLM_ROOT/examples/disaggregated/disaggregated_encoder/disagg_epd_proxy.py" \
  --host 0.0.0.0 --port 10002 \
  --encode-servers-urls http://127.0.0.1:19534 \
  --prefill-servers-urls disable \
  --decode-servers-urls http://127.0.0.1:19537 \
  --ec-consumer-zmq-addrs tcp://127.0.0.1:19019

--ec-consumer-zmq-addrs supplies the PD EC control addresses that the proxy passes to the Encoder. It is an argument of that script, not a vllm serve option. See the upstream ECMooncakeConnector usage guide.

The EC address must match PD's ec_ip and ec_port. Static --ec-consumer-zmq-addrs supports E + PD with --prefill-servers-urls disable; it cannot be combined with independent prefill URLs.

Send an image chat request to the proxy with any OpenAI-compatible client. For example, the following optional curl request uses an HTTP image URL. Replace the URL with an image reachable from the Encoder, and keep MODEL consistent with the served model name:

curl --fail-with-body http://127.0.0.1:10002/v1/chat/completions \
  -H 'Content-Type: application/json' \
  --data-binary @- <<EOF
{
  "model": "$MODEL",
  "messages": [{"role": "user", "content": [
    {"type": "image_url", "image_url": {"url": "https://example.com/image.jpg"}},
    {"type": "text", "text": "Describe this image."}
  ]}],
  "max_tokens": 32,
  "temperature": 0
}
EOF

4. Enable cross-Encoder caching with Mooncake Store

Store reuse is an optional producer-side feature. Configure it only on the Encoders; PD keeps its EC consumer configuration. For independently managed capacity, prefer standalone Store mode, following the upstream vLLM cross-Encoder deployment pattern. The embedded example below keeps storage in the Encoder processes.

Start a RAM Store

Start the master in another terminal and keep it running:

mooncake_master --port 50051

--port 50051 sets the master RPC listen port. Clients must use this port in master_server_address. The master manages object metadata and storage segments; it does not provide cache capacity.

Create mooncake_store.json on each Encoder host or mount it into each Encoder container:

{
  "mode": "embedded",
  "metadata_server": "P2PHANDSHAKE",
  "master_server_address": "127.0.0.1:50051",
  "global_segment_size": "4GB",
  "local_buffer_size": "512MB",
  "protocol": "ascend",
  "device_name": "",
  "enable_offload": false
}

In embedded mode, each Store client contributes global_segment_size when it connects. The JSON describes that client's contribution; it does not select which serving roles become Store clients.

In this deployment, cross_encoder_cache: true creates an EC Store client on each Encoder. PD uses ec_role: "ec_consumer" without cross-Encoder caching and does not create an EC Store client. Consequently, E0 and E1 each contribute 4 GiB, for 8 GiB after both caching Encoders have started. Store chooses the segments holding each object.

Field Meaning
mode embedded for the deployment shown here.
metadata_server P2PHANDSHAKE selects handshake-based TransferEngine metadata exchange.
master_server_address Shared master address and port; use the same master on all Encoders.
global_segment_size Storage segment contributed per Store client, not a cluster-wide capacity limit.
local_buffer_size Local buffer size in shared-engine mode. Independent and FabricMem engines use an effective size of zero. Keep a positive value in the JSON configuration.
protocol Must be ascend.
device_name Empty in this example; resources are selected by the transport configuration.
enable_offload Must be false; disk offload is not supported for cross-Encoder caching.

Local file paths may differ, but every Encoder must connect to the same shared Store deployment.

Configure and restart the Encoders

MOONCAKE_CONFIG_PATH is a process environment variable containing the Store JSON file path. Export it before starting each caching Encoder:

export MOONCAKE_CONFIG_PATH=/absolute/path/to/mooncake_store.json

This variable connects the Encoder to Store; it does not start the master. Keep the serving environment and the selected A2/RoCE or A3/FabricMem setup from step 1. Restart E using the command in step 2, replacing its entire --ec-transfer-config value with:

{
  "ec_connector": "ECMooncakeConnector",
  "ec_role": "ec_producer",
  "ec_buffer_device": "npu",
  "ec_buffer_size": 134217728,
  "ec_connector_extra_config": {
    "mooncake_protocol": "ascend",
    "cross_encoder_cache": true,
    "embedding_cache_prefix": "ascend-ec-demo-v1"
  }
}

The async GET budget defaults to 2 GiB; ascend_store_get_async_bytes is optional and is omitted here. Set it only to change that budget.

For a 2E + 1PD deployment, keep E0 and PD running. In another terminal, use the same serving and Store environment, then run the Encoder command from step 2 with the cache-enabled JSON above, changing only:

  • ASCEND_RT_VISIBLE_DEVICES=2
  • --port 19535

The resulting process layout is:

Process Visible-device setting HTTP port TP / DP
E0 0 19534 1 / 1
PD in the basic example 1 19537 1 / 1
E1 2 19535 1 / 1

Restart the proxy with both Encoder URLs:

python "$VLLM_ROOT/examples/disaggregated/disaggregated_encoder/disagg_epd_proxy.py" \
  --host 0.0.0.0 --port 10002 \
  --encode-servers-urls http://127.0.0.1:19534,http://127.0.0.1:19535 \
  --prefill-servers-urls disable \
  --decode-servers-urls http://127.0.0.1:19537 \
  --ec-consumer-zmq-addrs tcp://127.0.0.1:19019

Verify a remote cache hit

  1. Route a request through E0 while E1 has not processed that image. Initially run the proxy with E0 as its only Encoder.
  2. Wait for E0's Stored encoder output in Mooncake Store log. Publication is asynchronous; completion of a serving request does not acknowledge Store readiness.
  3. Restart the proxy with E1 as its only Encoder, keeping E0 and Store running. Submit the identical image with the same model and preprocessing.
  4. Check E1 for encoder output(s) from Mooncake Store. HTTP success alone does not prove remote reuse: a miss also succeeds by encoding.
  5. Restore the two-Encoder proxy configuration for normal serving.

Use the same configured model path on both Encoders for automatic multimodal identifiers. embedding_model_identity changes only the model field in Store keys; it does not by itself make different paths share content identifiers. Change embedding_cache_prefix when replacing weights in place or changing output-affecting settings. Caller-provided identifiers must consistently refer to the same input.

Store ownership and engine selection

Storage ownership and transfer-engine ownership are separate settings:

Setting Meaning
Store mode: "embedded" Each caching Encoder contributes its configured Host storage segment.
Store mode: "standalone-store" Encoders contribute zero capacity; an external mooncake_client owns the RAM pool.
FabricMem enabled Store creates a FabricMem engine. The EC slab remains registered only with the EC engine.
FabricMem unset, resource JSON nonempty Store creates an independent engine; the same fixed NPU slab is registered with EC and Store.
FabricMem unset, resource JSON unset Store borrows the EC engine and its slab registration.

Standalone Store mode

A separate mooncake_client provides the RAM pool. Keep the master and storage process running when restarting Encoders. Data held by a storage process is lost when that process exits.

To use this mode instead of embedded storage, start the storage process below, then replace the Encoders' Store JSON. Reuse the communication setup from step 1. See Mooncake's standalone deployment guide for the storage process.

Start the master and configure the storage process

Run a master on the Store host, or reuse the master already running there:

mooncake_master --port 50051

--port 50051 sets the master RPC listen port. Clients must use this port in master_server_address. The master manages object metadata and storage segments; it does not provide cache capacity.

In another terminal, start a storage process providing 16 GiB of RAM. Replace 192.0.2.10 with the Store host IP:

mooncake_client \
  --host=192.0.2.10 --port=50052 \
  --master_server_address=192.0.2.10:50051 \
  --metadata_server=P2PHANDSHAKE \
  --protocol=ascend \
  --global_segment_size=17179869184 \
  --enable_offload=false \
  --start_offload_rpc_server=false \
  --tenant_id=default --threads=8
Argument Meaning
--host Host IP bound by the storage process; replace it with the Store host address.
--port=50052 Storage-process RPC listen port, separate from the master's port 50051.
--master_server_address Master address and RPC port to connect to.
--metadata_server=P2PHANDSHAKE Exchange Transfer Engine metadata through peer handshakes.
--protocol=ascend Use the Ascend Transfer Engine.
--global_segment_size=17179869184 Contribute 16 GiB of Host cache capacity from this process.
--enable_offload=false Disable SSD offload.
--start_offload_rpc_server=false Do not start the SSD offload RPC service.
--tenant_id=default Use the default tenant.
--threads=8 Use eight client worker threads in the storage process.

Connect the Encoders

Each Encoder keeps its own transport environment from step 1 and uses this Store JSON, replacing the example master address:

{
  "mode": "standalone-store",
  "metadata_server": "P2PHANDSHAKE",
  "master_server_address": "192.0.2.10:50051",
  "global_segment_size": 0,
  "local_buffer_size": "512MB",
  "protocol": "ascend",
  "device_name": "",
  "enable_offload": false
}

Replace the Store JSON configured above and restart the caching Encoders. The vLLM standalone-store configuration requires global_segment_size: 0 on Encoders; the separate mooncake_client supplies the 16 GiB Host pool. The JSON's local_buffer_size must still be positive. The connector passes zero local-buffer bytes to native setup for FabricMem or independently configured Store engines; the shared-engine path uses the configured value. Each Encoder still allocates its own NPU EC pool, and PD keeps its existing EC consumer setup.

Configuration and memory sizing

Shared reuse

These options belong in each producer's ec_connector_extra_config:

Option Default Meaning
cross_encoder_cache false Enable Store reuse and background GET admission.
embedding_cache_prefix Empty string Shared namespace; use the same value on participating Encoders.
embedding_model_identity Configured model path Override the key's model field; matching content identifiers are still required.
store_max_pending_items 32 Maximum pending publications per Encoder; must be positive.
store_max_pending_bytes 2147483648 (2 GiB) Retained tensor-storage budget for pending publications; must be positive.
store_read_buffer_bytes 134217728 (128 MiB) Maximum bytes per read chunk, including object headers; must be positive. Individual objects exceeding it fall back to encoding.
ascend_store_get_async_bytes 2147483648 (2 GiB) Expected payload bytes admitted to background GETs until consumed or discarded. Zero admits no background GETs.

Background GETs run whenever shared reuse is enabled and budget is available. The scheduler holds affected requests until results are available; misses and recoverable read errors follow normal encoding. Objects beyond the remaining async budget use the synchronous Store path.

The async byte budget is an admission limit, not an extra allocation. Ascend Store PUT and GET lease regions from the producer's registered NPU staging pool. GET chunks must also fit its aligned available capacity; lack of a lease can cause a hit candidate to fall back to encoding. Loaded outputs need local-cache storage, and a GET staging lease remains live until cache copies and P2P readers finish. Size the EC pool for concurrent P2P, PUT, and GET work, independently of Store storage segments.

Pending-publication bytes, read-chunk bytes, and async-admission bytes control different resources. Increasing one does not enlarge the EC pool or Store capacity. Publication is best-effort and can be skipped when its budget or staging space is unavailable.

Separate prefill and decode

For E + P + D, put ECMooncakeConnector with ec_role: "ec_consumer" on P, where embeddings are needed. Configure P-to-D KV transfer separately. Use the upstream proxy's dynamic registration API and register ec_zmq_addrs on the prefill record. The static --ec-consumer-zmq-addrs flag above supports E + PD only. See the upstream proxy README for registration and authentication.

For Ascend P-to-D deployment, use the Mooncake multi-node guide and Ascend EPD example. Those examples are separate deployment paths; do not assume their proxy flags implement this guide's Mooncake EC routing contract.
